Manual clamp

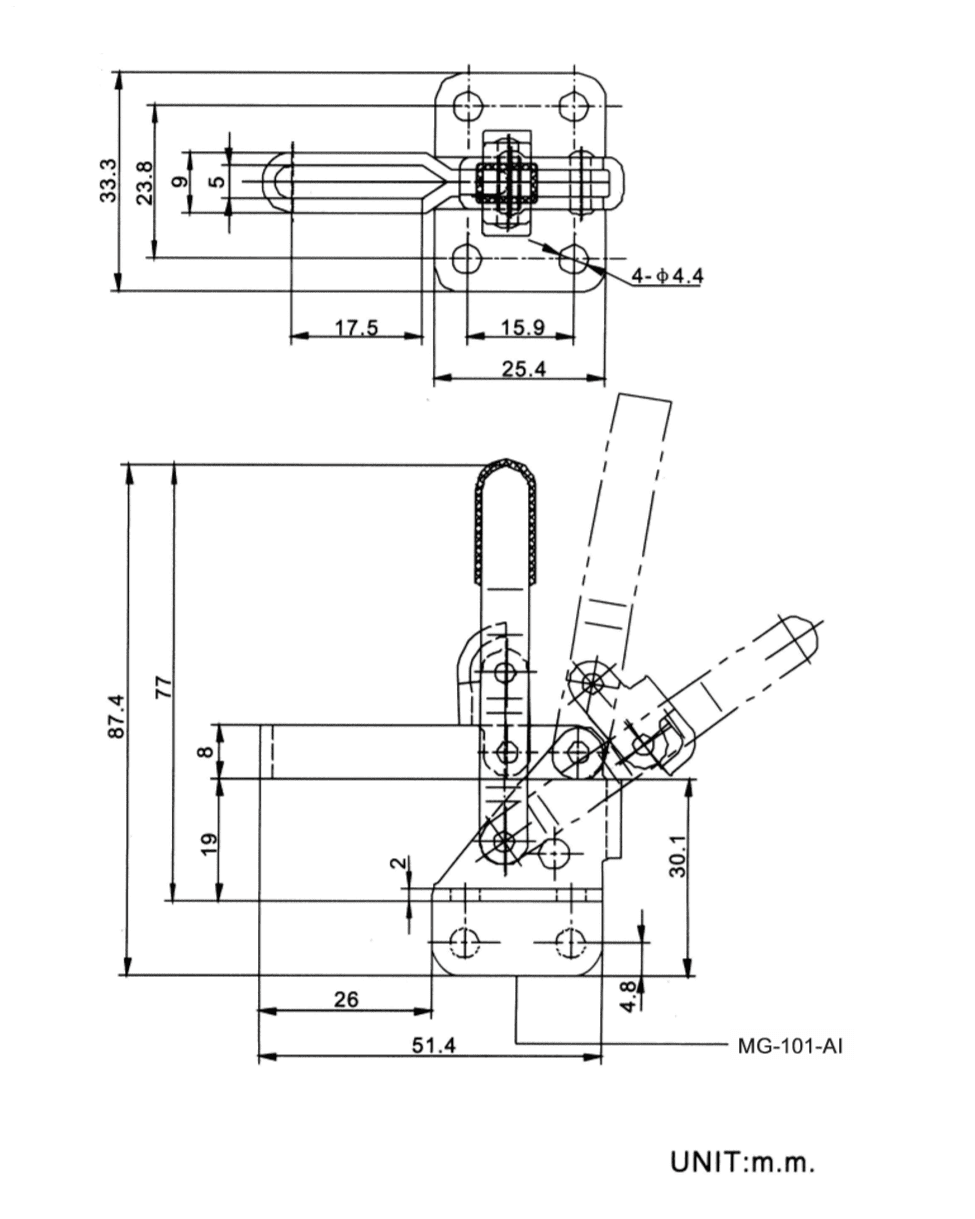

U-shaped pressure handle→length=26mm,height=19mm
Flanged base→Base hole center distance:(X,Y)=(15.9mm,23.8mm)
Straight handle(Red rubber sleeve)
Metric standard accessories=FC-055008-W(one 50mm black rubber head screws + two M5 nuts + two M5 spacers)
Imperial standard accessories=FC-10138-W(one 35mm black rubber head screws + two 3/16 inches nuts + two M5 spacers)
Use M5 or 3/16 inches black rubber screws with various length:
FC-053508(metric, 35mm)
FC-054508(metric, 45mm)
FC-055008(metric, 50mm)
FC-10138(imperial, 11/8 inches)
FC-10134(imperial, 7/4 inches)
